When homeowners compare new windows, they often focus first on the number of panes. Double or triple? While glazing thickness matters, another technology has a major influence on how modern windows perform throughout the year: Low-E glass.
Low-E, short for low emissivity, refers to glass with a thin, nearly invisible coating designed to control how heat moves through a window. Low-E glass windows can help reduce heat loss during cold Canadian winters, manage unwanted solar heat during warmer months, and improve overall indoor comfort.
But not every Low-E coating performs the same way. Different coatings can be designed to allow more solar energy into a home or provide greater solar control. That means choosing energy-efficient windows is not simply about asking whether they have Low-E glass. It is about choosing the right Low-E glass coating and complete glass package for your home.
In this guide, we explain what Low-E glass is, how it works, how it interacts with Argon gas and multiple panes, and why different Low-E options can produce very different window performance.
What Is Low-E Glass?
Low-E glass, or low emissivity glass, is glass with a very thin transparent metallic coating applied to one of the glass surfaces.
The purpose of a Low-E coating is to reduce the transfer of radiant heat through the glass while still allowing natural daylight into the home.
Natural Resources Canada identifies Low-E coatings as an important component of modern energy-efficient windows. Different Low-E products can also have significantly different solar-performance characteristics, which is why the type of coating matters.
Regular clear glass allows heat energy to pass through relatively easily. A Low-E glass coating changes the way certain wavelengths of energy interact with the glass, helping the window manage heat transfer more effectively.
That is why Low-E glazing is now commonly incorporated into high-performance double and triple glazed windows.
How Does Low-E Glass Work?
To understand Low-E glass, it helps to separate visible light from heat energy.
The coating is designed to remain highly transparent, so daylight can still pass through the window. At the same time, it affects the movement of infrared heat energy.
During winter, this can help reduce the amount of indoor heat lost through the glass.
During warmer weather, the right solar control Low-E glass can help limit unwanted solar heat entering the home.
Natural Resources Canada notes that factory-installed Low-E coatings can reduce winter heat loss and summer heat gain, helping maintain more comfortable indoor temperatures and reducing the load on heating and cooling systems. Learn more here – Keeping The Heat In – Section 8: Upgrading windows and exterior doors – Natural Resources Canada
Think of Low-E as selective control for energy. Light is still welcome through the window, while heat gets a much more carefully managed route.
Why Does Low-E Glass Matter for Energy-Efficient Windows?
Windows are part of the thermal boundary between your conditioned indoor space and the outdoors. The glass package therefore influences how comfortable rooms feel throughout different seasons.
An energy-efficient Low-E glass package can contribute to:
- Reduced heat transfer through the glazing
- Better winter comfort near windows
- Better control of unwanted summer solar heat
- More consistent indoor temperatures
- Reduced exposure to ultraviolet energy
- Improved overall window energy performance
However, Low-E should never be evaluated by itself.
A high-performance window is a complete system that can include the number of panes, insulating gas, spacer technology, frame design, sealing, glazing dimensions and Low-E configuration.
If you are starting with the bigger picture, read our guide to Energy Efficient Windows: Choosing the Right Glass Package to see how these technologies work together.
Not All Low-E Glass Is the Same
One of the biggest misconceptions about Low-E windows is that every Low-E coating provides the same performance. It does not.
Different low emissivity coatings are engineered with different solar and thermal characteristics. Some allow a greater amount of the sun’s energy through the glass, while others are designed to reject more solar heat.
This becomes especially important in Canada’s climate, where homeowners may want to balance two competing goals:
Capture useful solar warmth when it is beneficial
and
Control unwanted solar heat when exposure becomes excessive.
The best solution therefore depends on more than choosing a product labelled “Low-E.”
Low-E Glass and Solar Heat Gain
Solar heat gain is the amount of solar energy entering a home through a window.
Sometimes that heat can be useful. During Canada’s heating season, solar energy entering through appropriate windows can contribute to passive warming.
In other situations, especially in rooms with significant sun exposure or large areas of glazing, excessive solar heat can contribute to overheating and increased cooling demand.
This is where different Low-E glass windows can serve different purposes.
At Stage Windows & Doors, multiple Low-E combinations are available through two glass-package approaches: Energy-Gain and Sun-Shield. Stage describes Energy-Gain packages as designed to take advantage of solar heat, while Sun-Shield packages are designed to control unwanted solar heat and UV exposure. Learn more about Stage energy efficient technologies here –Windows Energy Efficiency & Standards | Stage Windows & Doors
Energy-Gain Glass Packages
An Energy-Gain approach can be useful when capturing more solar warmth is part of the performance goal.
This may be considered for applications where the home’s orientation, glazing area and overall design make passive solar energy beneficial.
Sun-Shield Glass Packages
A Sun-Shield approach focuses more heavily on solar control.
It may be appropriate for rooms experiencing strong solar exposure, large areas of glass, or projects where reducing unwanted heat gain is an important comfort consideration.
Neither approach is automatically “better.”
The better glass package is the one that matches the specific performance requirements of the home.
Learn more about how Stage approaches these options in Energy Efficient Windows: Choosing the Right Glass Package.
Low-E Glass + Argon Gas: How Do They Work Together?
Low-E and Argon are often mentioned together, but they perform different jobs.
Low-E Coating
The Low-E coating primarily helps control radiant heat transfer through glazing.
Argon Gas
Argon is used in the sealed space between panes of insulated glass to improve thermal performance.
Instead of treating Low-E and Argon as competing features, it is better to think of them as different parts of the same glazing system.

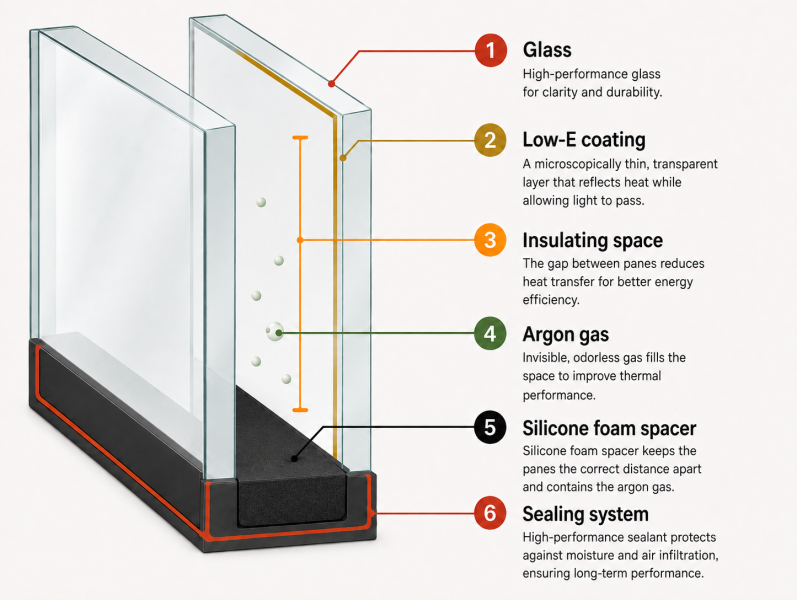

A modern Low-E Argon window combines:
Glass + Low-E coating + insulating space + Argon gas + spacer + sealing system to create an insulated glass unit.
Low-E Double Pane Windows vs Triple Pane Low-E Windows
Low-E coatings can be incorporated into both double and triple glazing.
Low-E Double Pane Windows
Low-E double pane windows use two panes of glass with an insulating space between them. A modern double-glazed unit can combine Low-E glass with Argon gas and high-performance spacer technology.
This can provide an effective balance of energy efficiency, comfort, and value.
Triple Pane Low-E Windows
Triple pane Low-E windows contain three panes of glass and two insulating spaces.
The additional pane and chamber give the glazing system greater potential to reduce heat transfer, particularly when the rest of the window is engineered to support the heavier glass package. Stage offers both double and true triple glazing configurations, with multiple Low-E combinations available depending on the required performance.
For a detailed comparison, read Double vs Triple Pane Windows: Which Is Better?
Low-E Glass vs Regular Glass
The difference becomes clearer when the two are compared side by side.
Low-E therefore does much more than make glass “energy efficient” in a generic sense. The coating can be selected as part of a larger strategy for insulation, solar heat gain and year-round comfort.
How to Choose the Right Low-E Glass for Your Home
There is no single Low-E configuration that is perfect for every house.
When comparing low emissivity windows, consider the entire project.
- Your Climate
Cold-weather performance is particularly important for Canadian homes, but summer solar control can also matter depending on the property.
- Window Orientation
The amount and timing of direct sunlight can vary significantly from one elevation of a house to another.
A glass package that works well on one side of a home may not always be the ideal solution for another.
- Amount of Glass
Large picture windows, patio doors and window walls can have a greater influence on how a room responds to outdoor temperatures and solar exposure.
- Double or Triple Glazing
Decide whether the performance goals of the project call for double or triple glazing, then consider the appropriate Low-E configuration within that system.
- Solar Heat Gain
Determine whether capturing more useful solar energy or controlling unwanted solar heat is the greater priority.
- Whole-Window Performance
Do not stop at the glass.
Frame construction, glazing thickness, insulating gas, spacer systems, seals and installation all matter.
Stage Windows & Doors offers multiple Low-E combinations with its Energy-Gain and Sun-Shield packages, along with double and triple glazing options. Stage windows with Low-E double- and triple-glazing combinations have also been independently tested for physical performance, with thermal performance simulated and validated through the NFRC program.
Low-E Glass Is One Part of a Better Window
Low-E technology plays an important role in today’s energy-efficient windows, but its greatest value comes when it is properly integrated with the rest of the glazing system.
The number of panes matters.
The insulating gas matters.
The spacer matters.
The frame matters.
And the type of Low-E coating matters.
Instead of looking for a window that simply says “Low-E,” look for a glass package designed around the actual needs of your home.
Stage Windows & Doors offers multiple Low-E configurations through its Energy-Gain and Sun-Shield packages, along with true double and triple glazing options, allowing the complete glazing system to be selected around comfort, energy efficiency and solar-performance goals.
To understand how Low-E fits into the full glass package, visit Energy Efficient Windows: Choosing the Right Glass Package.
Still deciding between glazing configurations? Read Double vs Triple Pane Windows: Which Is Better?.
For technical information about Stage glazing, testing and window performance, explore Windows Energy Efficiency & Standards.
Frequently Asked Questions
Is Low-E glass energy efficient?
Yes. Low-E coatings are widely used as part of energy-efficient glazing systems because they can improve thermal performance compared with clear glass. The actual performance depends on the coating and the rest of the window system.
Does Low-E glass keep heat in or out?
It can help with both, depending on the Low-E configuration. Low-E coatings can reduce indoor heat loss during winter, while solar-control coatings can also reduce unwanted solar heat gain. Different coatings are designed with different solar characteristics.
Is Low-E glass the same as tinted glass?
No. Low-E glass uses a thin low-emissivity coating to manage heat transfer. Tinted glass primarily changes solar transmission by absorbing portions of incoming solar energy. Natural Resources Canada treats Low-E and tinted glazing as distinct technologies.
Is Low-E glass available in double pane windows?
Yes. Low-E double pane windows can combine two panes of glass with a Low-E coating, insulating gas and spacer technology.
Can triple pane windows have Low-E coatings?
Yes. Triple pane Low-E windows can use Low-E coatings together with two insulating spaces. The specific number and placement of coatings depend on the glazing design and desired performance.
Is Low-E glass better with Argon gas?
The technologies complement each other. Low-E coating helps manage radiant heat transfer, while Argon improves the insulating performance of the space between glass panes. Together they can form part of a high-performance insulated glass system.
Which Low-E glass is best?
There is no universal best Low-E glass for every home. The right choice depends on climate, orientation, window size, solar exposure, glazing configuration, and the desired balance between solar heat gain and solar control.
